Connectors

These connectors were developed to connect microducts with each other. Our system enables an easy, fast connection and disconnection of the microduct.

The connectors’ robust construction includes IP68 water ingress protection and resistance to high pressure fores, allowing them to be used in direct buried (DB) applications. The transparent body enables easy visual inspection of the cable within the connector. The straight push-in and endstop connectors have a fully plastic desgin utilising non-conductive parts only and are also free from metal parts.

The connectors are made in accordance with Standart CEI EN 50411-2-8. In addition, the uniformity of production is ensured by an external, recognised quality assurance program, TUV Süd.

Besides production uniformity, TUV Süd alsa tests the tightness, any pressure drop during tests, the tensile strenght of the microduct as well as the (cyclic) temperature change, waterproofness and ressitance to stress cracking solvents. Further, the connectors are subjected to visual inspection and a salt spray test.

General Data

Materials: 1 = body Polyamide
2 = seal NBR
3 = washer Polyacetal
4 = collet Polyacetal
Working pressure: 20 bar used for blowing system
Working temperature: from -20 to +50 °C
Fluid: Compressed air with blowing system
Microduct to connect: Polyethylene HDPE
Microduct outer diameters: 3, 4, 5, 7, 8, 8.5, 10, 12, 12.7, 14, 15, 16, 18, 20 mm
Estimated life: 25 years
Standards: CEI EN 20411-2-8
Rohs
CEI EN 61386-24
Patent: Connectors patent
Protection class: IP68
Direct Buried (DB) USE: CV4580-V4580 – CV4581-V4581 – CV4582-V4582 – CV4750-V4750 models can be used in direct buried installation.
We don’t recommend the burying of thin microduct which can fail in DB conditions while the connector will perform correctly.
Warning: Not to be used in sealed closures without an over pressure safety system.
Confuct of Sucstances: No liquids may be introduces into the infrastructure except for water-based lubricants specifically designed for optical fibers.
Storage Conditions: Store in a dry environment, in the absence of dirt and dust, away from direct sunlight and heat sources.

Products

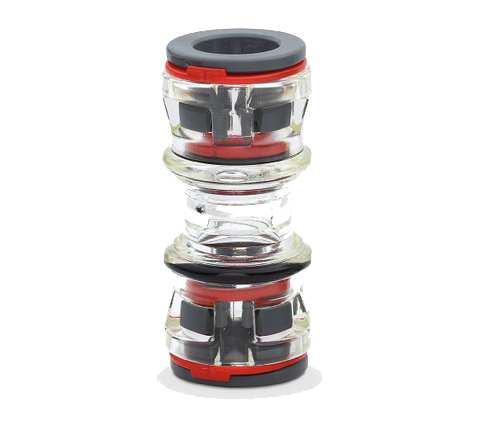

Straight connector

Standard connector for DI (Direct Installation) sizes of microduct. Compatible for eventual DB (Direct Buried) use.

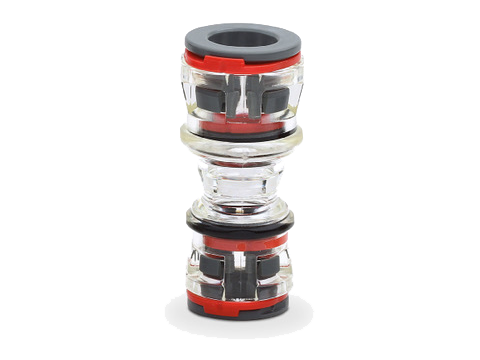

Straight connector

Connector for DB(Direct Buried) sizes of microduct.

Reducing straight connector

Reducing connector for DI (Direct Installation) and DB (Direct Buried) different sizes of microduct Compatible for DB (Direct Buried) use.

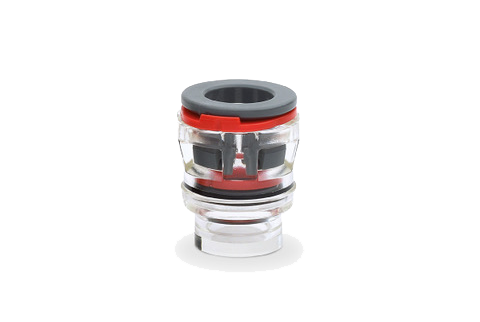

Endstop connector

Endstop connector for DI (Direct Installation) and DB (Direct Buried) sizes of microduct Compatible for DB (Direct Buried) use.
